Description

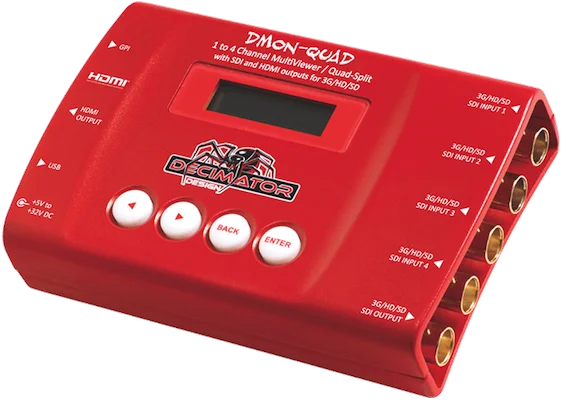

The Decimator DMON-QUAD is a compact, portable unit equipped with an LCD screen and buttons for quick setup. This converter supports A and B level inputs and outputs, with conversion between 3G A and B levels
Key features of the Decimator DMON-QUAD multiviewer:
- Low-cost 3G/HD-SDI MultiViewer 1 to 4 or 4-input to 1 multiplexer
- Customizable displays with many predefined standard formats
- 16-character overlay per window with customizable activation, size, and position
- Display up to 8 audio levels per window with customizable activation, size, and position
- Horizontal/vertical image rotation per window
- Audio ID overlay
- Tallies can be applied either to tally frames (default setting) or to borders
- Tally frames allow up to 4 Tallies per window
- Fast switching between inputs with full-screen resizing
- Selecting the output format in both full-screen and multiviewer modes
- Low-latency buffer memory for each input, thus allowing asynchronous sources on the inputs
- Linked 3G/HD-SDI and HDMI outputs
- 4 3G/HD-SDI inputs with automatic detection (26 formats supported in total)
- Each window is independent of the others, allowing simultaneous display of 3G/HD-SDI formats with different formats and frame rates
- Variable image ratios per window
- In transparency mode, the selected input is available on both the 3G/HD-SDI and HDMI outputs
The DMON-QUAD also includes:
- GPI on an RJ-45 connector for tallies and remote switching
- RS422/485 over an RJ-45 connector for digital signage and tallies
- A USB port for access to full settings and firmware updates
- Sturdy aluminum chassis
- Power socket with locking mechanism at the connector
- Included are an external power supply, an HDMI cable, and a USB cable
