Description

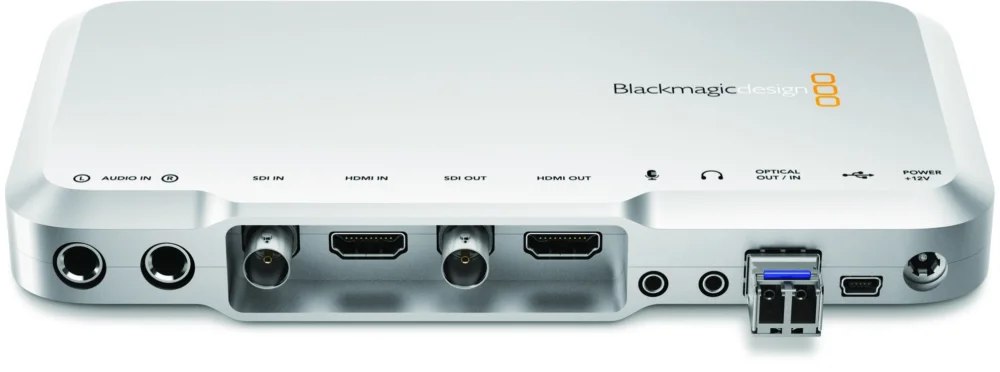

Introducing the Blackmagic Design ATEM Camera Converter.
The Blackmagic Design ATEM Camera Converter allows HDMI or SDI cameras to utilize fiber optics for a direct-to-control line-up up to 45 kilometers away. With ATEM camera converters, you can have more cameras where you need them. The ATEM Camera Converter also includes an intercom link to the director, an external microphone input, program return, a tally light indicating that the camera is broadcasting, and a built-in battery, all at a very affordable price.
This camera converter is a complete solution for converting cameras to fiber optics for live production. Its reasonable cost makes it possible for any production, without exorbitant budgets, to take advantage of fiber optics for cameras located far from the control room, putting you right in the heart of the action.
Any camera can be connected to the HDMI or SDI inputs for conversion to fiber optics, and simply connecting the program signal to the fiber optic cable allows camera operators to view it via the ATEM camera converter’s HDMI and SDI outputs. Professional local microphone inputs provide optimal audio quality on location. The ATEM camera converter also features an internal battery for self-contained operation, even far from any power source. It also incorporates a radio link and a tally light.
Previously, positioning cameras at events required expensive cables that only the wealthiest productions could afford. With the ATEM camera converter, more and more professionals will be able to place cameras remotely, making live broadcasts of events that were previously impossible now possible at a lower cost. At the heart of the action, cameras deliver more spectacular footage. It is now possible to place cameras at the finish line of a car race, near the horse stalls, or even at the far end of a golf course.
The ATEM camera converter delivers the best quality from HD cameras, even entry-level models, thanks to the absence of file compression. The ATEM camera converter is perfect for concerts, sporting events, or even in theaters, places of worship, and for surveillance. Cameras can be positioned throughout the entire event venue, even in challenging locations.
For live broadcasts, it is crucial that camera operators can communicate with the director to optimize teamwork. The ATEM camera converter is equipped with a radio link that can be used with entry-level headphones or even smartphone headsets, ensuring constant contact with the director at the controls. The ATEM camera converter’s radio link works by transmitting microphone audio through channels 15 and 16 of the camera’s optical video output, and audio is monitored via channels 15 and 16 of the optical video input on the headphones. Push-to-talk buttons allow for speaking, and volume control knobs are provided.
To let camera operators know when their camera is being broadcast, the ATEM camera converter uses the standard protocol to illuminate two integrated tally LEDs. Simply connect the ATEM console’s program output to the ATEM camera converter via the optical return signal. The correct camera is then selected using the software on USB or the buttons on the keyboard. If an external monitor is connected to the HDMI or SDI outputs, a red border is easily displayed on the screen.
The ATEM camera converter is designed to operate remotely, so it includes a battery, eliminating the need to remain near a power source. A belt clip allows it to be attached to a cameraman’s belt, facilitating their movements. And if they’re using a tripod, they can even attach the camera converter to it, next to the camera.
Thanks to the ATEM Camera Converter, you’re always closer to the action, filmed live from all angles, from remote locations, while remaining constantly connected to the control room and the rest of the crew: affordable fiber optic cables extend the reach of SDI and HDMI cameras; microphone inputs, monitor outputs, a broadcast indicator, and a built-in battery make it an essential and affordable tool for covering live events with multiple cameras.
Features of the Blackmagic Design ATEM Camera Converter:
* Converts SDI and HDMI to fiber optics, and fiber optics to SDI and HDMI.

* Balanced jack microphone inputs, which override the camera’s audio when connected.

* Headphone connection to maintain audio contact with the director via fiber optic cable.

* Full 10-bit design that supports 3Gb SDI technology to anticipate the future.

* Built-in battery with several hours of battery life, rechargeable via mains power.

* « Tally » indicator lights so that cameramen know when their footage is being broadcast.

* Buttons for power, audio level adjustment, etc.

* Extremely robust device constructed from a single block of aluminum.
