Description

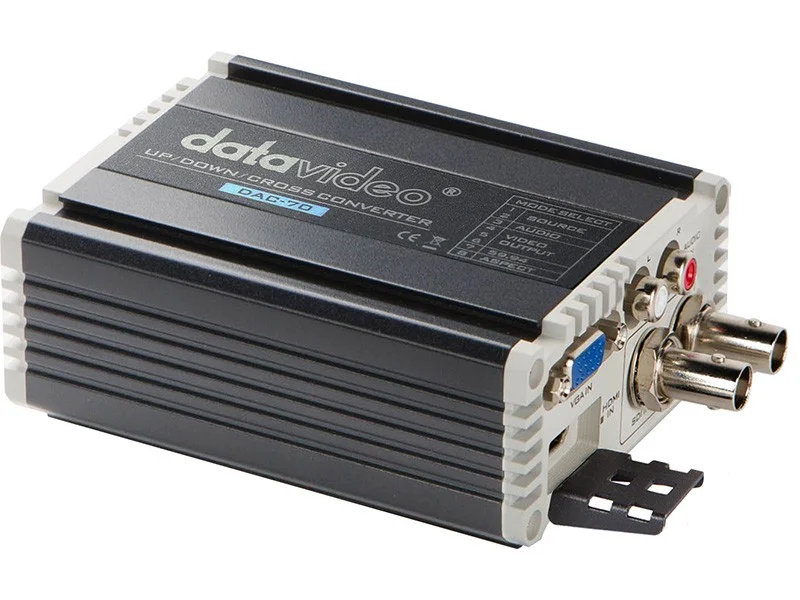

Introducing the Datavideo DAC-70

The Datavideo DAC-70 up/down/cross converter is designed to convert VGA, HDMI, SDI video signals with audio input to 3G/HD/SD SDI outputs.

Perfect for connecting a VGA/HDMI output from a computer to SDI devices over a long-distance SDI cable. Ideal for conferences, auditoriums, and conference rooms.

Highlights of Datavideo DAC-70

• 3G/HD/SD Up/Down/Cross Conversion
• Audio Input/HDMI/SDI/VGA
• 3G/HD/SD SDI and HDMI output
• Can be rack-mounted using the optional RMK-2 2RU rack solution
• DC 12V, 3.6 watts

Video input formats

SD-SDI: 525i, 625i
3G-SDI: 1080p60/50, 1080p59.94 (Level A)
HD-SDI: 1080i60/50, 1080p30/25/24, 1080p29.97, 1080p23.98, 1080i59.94, 720p60/50, 720p59.94
HDMI: (YUV/RGB): 1080p60/50, 1080p59.94, 1080p30/25/24, 1080p29.97, 1080p23.98, 1080i60/50, 1080i59.94, 720p59.94, 720p60/50, 576p, 480p, VGA, 1600×1200@60Hz, 1400×1050@60Hz, 1366×768@60Hz, 1280×1024@60Hz, 1024×768@60Hz, 800×600@60Hz

Video output formats

SDI/HDMI (YUV: 4:2:2): 1080p60/50, 1080p59.94, 1080p23.98/29.97/24/25/30, 1080i60/50, 1080i59.94, 720P60/50, 720P59.94, 525i, 625i
Supported audio formats

SDI embedded audio: up to 8 channels, PCM 48kHz;
HDMI embedded audio: up to 8 channels, PCM 96kHz
; Stereo audio input: 2 channels, PCM 48kHz
; *USB interface for firmware upgrade

Content of the box

1x DAC-70 product
, 1x 12V DC-AD switch
, 1x 8-pin DIP switch with labels
, 1x thank you card
