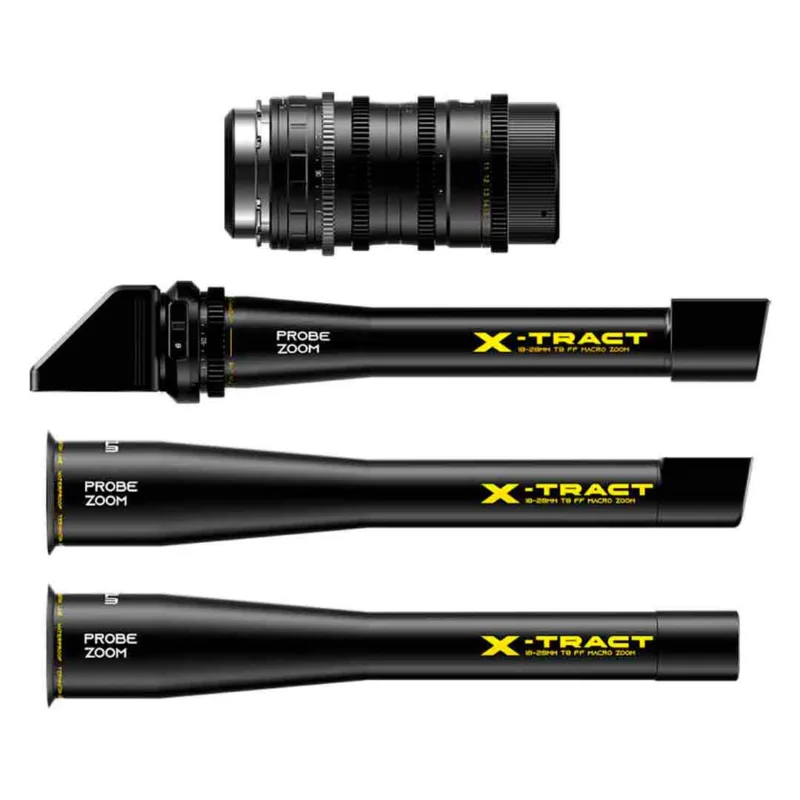

Introducing the DZOFILM X-tract 18-28mm 0°/90°/360° Optical Barrel Kit
The DZOFILM X-tract 18-28mm 0°/90°/360° Optical Barrel Kit is a three-lens kit with an interchangeable module , specially designed for professional shoots requiring extreme flexibility. This modular version provides one barrel for your three interchangeable lenses.
Each lens covers a focal length range of 18 to 28 mm , with a constant aperture of T8 to T45 , and an image circle of ø43.2 mm , ideal for full-frame sensors . They all feature a PL mount , with an EF option available.
Three perspectives, three independent tools
The DZOFILM X-tract complete kit includes the following three full versions:
-
X-tract 0° (Direct View) : straight lens offering the best image quality in the range, ideal for classic shots, macros and fiction.
-
X-tract 90° (Right periscope view) : 90° angled lens, designed for filming in inaccessible angles (ceilings, floors, etc.).
-
X-tract 360° (Rotating periscope view) : Periscope lens with 360° image rotation, allowing dynamic effects such as barrel roll, Dutch tilt or inverted view.
Professional optical quality on every module
-
X-tract 0° : 25 elements in 18 groups
-
X-tract 90° : 26 elements in 19 groups
-
X-tract 360° : 27 elements in 20 groups
All incorporate 7 HRI glass and 6 ED glass for exceptional image quality, with up to 2.1x magnification , a minimum focus of 6 mm , and smooth manual controls : 300° focus, 100° zoom, and 72.1° iris.
Case studies
The DZOFILM X-tract 0° is ideal for -up shots, macro photography, or cinematic sequences requiring distortion-free images. Its straight construction ensures the best optical quality.
The DZOFILM X-tract 90°, with its 90° periscopic vision, allows you to capture shots under furniture, on the ceiling or at ground level, while keeping the operator out of frame.
The DZOFILM X-tract 360° is perfect for effects like barrel rolls or Dutch tilts. Its rotating head offers creative results without the need for complex motorized rigs.
Wildlife or industrial documentaries
Thanks to its minimum focusing distance of 6 mm and its periscopic system, the kit is suitable for inaccessible or delicate environments, such as insect habitats or industrial machinery.
Frequently Asked Questions:
1. What is the difference between the 0°, 90° and 360° modules?
The 0° module is a straight lens, designed for optimal image quality. The 90° is an angled periscope, ideal for filming in tight spaces. The 360° allows for complete image rotation, perfect for creative effects.
2. Is this kit compatible with mounts other than PL?
By default, each lens is in PL, but an EF option is planned, offering compatibility with other systems.
3. What is the optical quality offered by the kit?
Each module incorporates HRI and ED glass, for a sharp image, without aberration, with magnification up to 2.1x and excellent resolution on Full Frame sensor.
4. Is the control system motorizable?
The controls are manual, with smooth rotation: focus at 300°, zoom at 100°, iris at 72.1°. It is possible to motorize each ring for use in cinema.
Key features of the DZOFILM X-tract 18-28mm 0°/90°/360° Optical Barrel Kit:
-
Unique modularity : a single interchangeable barrel for three distinct objectives.
-
Three shooting perspectives : straight, 90° angled, and 360° rotating for maximum creativity.
-
High-end optical construction : up to 27 elements in 20 groups, with HRI and ED lenses.
-
Full Frame sensor compatibility : ø43.2 mm image circle ensuring optimal coverage.
-
Cinema ergonomics : precise manual controls adapted to a professional motorization.
