Description

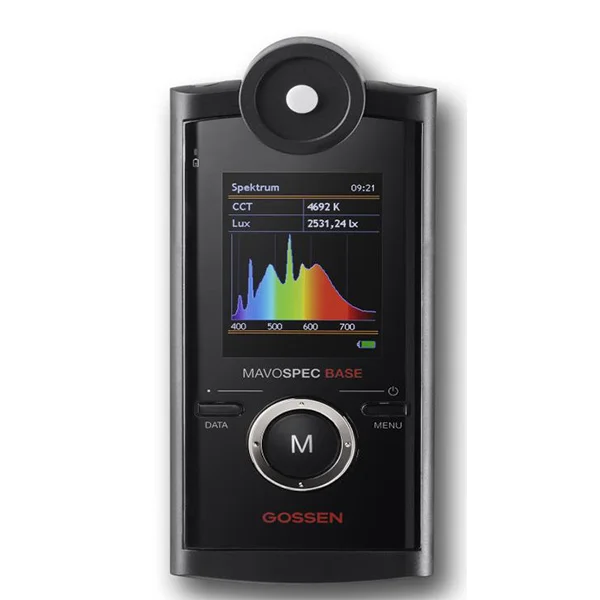

Mavospec Base was designed to make light very precise and easy to manipulate wherever and whenever you want. All the major measurement variables for light, such as illuminance, correlated color temperature, color rendering index according to CIE 13.3 and IES TM-30-15, chromaticity coordinates according to the different CIE standards, flicker, spectral power distribution, peak and dominant wavelengths, are defined from the measured spectrum and indicated in a way that is understandable to both the expert and the amateur.

Key features of the Mavospec Base spectrometer:

Intuitive one-handed controlwith controller ring and a few buttons

Very bright color screenfor perfect viewing in all lighting conditions and easily understandable on-screen feedback

Excellent stability of the measured valueover a wide temperature range thanks to the integrated temperature sensor and automatic dark current temperature compensation

Photometric and radiometric calibrationwith a calibration report guaranteeing perfect and plausible results

Investment securitythanks not only to its very high quality made in Germany and a 3-year guarantee

All measured values are stored on its integrated SD card and then easily transmitted to the computer via the USB interface

Give your Mavospec Base light the right colorlight redefined

Light shapes spaces and stimulates the observer’s senses. Light creates tension, triggers impulse purchases, increases productivity, provides security, or simply invites relaxationto name just a few of the requirements that successful lighting must meet. The development of high-efficiency LEDs with excellent energy efficiency has opened up entirely new perspectives for lighting planning, but at the same time, a major challenge has emerged: the effect produced by light.

The same color day after day

Precision stems from experience, expertise, and meticulous, consistent calibration. Gosse is a specialist in light measurement with decades of experience in the field. It’s no coincidence that Gosse has become synonymous with continuous innovationresponding to ever-evolving technologies, regulations, and markets. The intuitively designed MAVOSPEC BASE is one of the most accurate and reliable spectrometers in its class, utilizing the very latest technology available on the market.

Like all other precision photometric devices, this product also requires regular maintenance, recalibration and software updates to maintain its capabilities over the long term within the specified specifications and tolerances.

Calibrated for the most demanding requirements

For MAVOSPEC, we recommend a calibration interval of 12 to 24 months. Recalibration is performed in the GOSSEN lighting laboratory on a certified and tested optical bench whose traceability to the national standard of the German Federal Institute for
Physics and Metrology (Physikalisch-Technische Bundesanstalt) is guaranteed by a Wi41G scientific standard lamp. The laboratory is subject to monitoring of control equipment according to DIN EN ISO 9001-9004 and is also accredited by DAkkS according to DIN EN ISO/IEC 17025. This guarantees the highest quality level of calibration and its international recognition.

Key factors for the study of lighting

The light spectrum emitted by an LED behaves entirely differently from that of previously used light sources. The brightness and color of LEDs vary depending on the manufacturing process. Natural light, incandescent lamps, and halogen lamps have a color rendering index (CRI) of 100, the highest possible index, a value that LED lighting cannot currently achieve. Furthermore, significant variations exist between different LED series, so that even when using lighting composed solely of LEDs, mixed lighting environments appear, which the color and illuminance measurements used until now can no longer reliably assess. Analyzing the quality of successful lighting:
When it comes to lighting design, a comprehensive measurement of light quality is proving increasingly essential. While previously it was sufficient to check illuminance and luminance using conventional lighting techniques, today it is also necessary to study the spectrum, chromaticity, color temperature, color rendering index, and flicker.
The Mavospec Base spectrometer determines all the relevant factors of your light to ensure that everything meets your requirements. This compact, high-end spectrometer analyzes your light with exceptional precision, clearly displays the results on a color screen, and records the measured valuesday after day and for all light sources.

#image_1381897889 {
width: 100%;
}

Perfect lighting for every requirement Mavospec Base

The qualification of light is becoming increasingly important in a growing number of sectors. Mavospec Base helps you meet your requirements preciselyfrom individual light sources to the efficient evaluation of different lighting situations.

Development and manufacturing of lighting fixtures

Process control and quality assurance by sampling with recording for evaluation and integration into test systems via open interfaces.

Lighting for studios, stages and cinemas

Weighting of different light sources, white balance, color rendering analysis.

Monitors, projectors and large screens

Control and calibration of color rendering, analysis of the visualizable color space and harmonization of spare parts colors.

Interior design, lighting design

Optimization of the choice and harmonization of the different light sources and verification of the results using study software such as DIALux.

#image_820688930 {
width: 100%;
}

#image_504527785 {
width: 100%;
}

Electrical installation

Analysis of the light given by the supplied or installed luminaires, relating to the quality of light and color as well as the homogeneous weighting of color.

Medical technique

Verification of the illuminance and color rendering index of room categories, dental treatment rooms and dental prosthesis laboratories.

Research human centric lighting

Adjusting and controlling brightness and color temperature throughout the day to determine the biological influence of light on humans.

Shop lighting

Optimizing light to meet the requirements for the presentation of goods in the food industry and for a presentation with faithful colours of textile and leather goods.

Workstation lighting

Perfect color rendering meeting the strict requirements for color selection and control in the graphic and chemical industries, hair care and cosmetics, woodworking, ceramics, textiles, leather goods and jewelry.

Public lighting

Guarantee of lighting that complies with street and public place standards during renovations or the switch to LED lighting.

Exhibitions, museums, libraries

Monitoring of sufficient lighting and correct color rendering. Analysis of the spectrum relating to harmful spectral fractions.
