Description

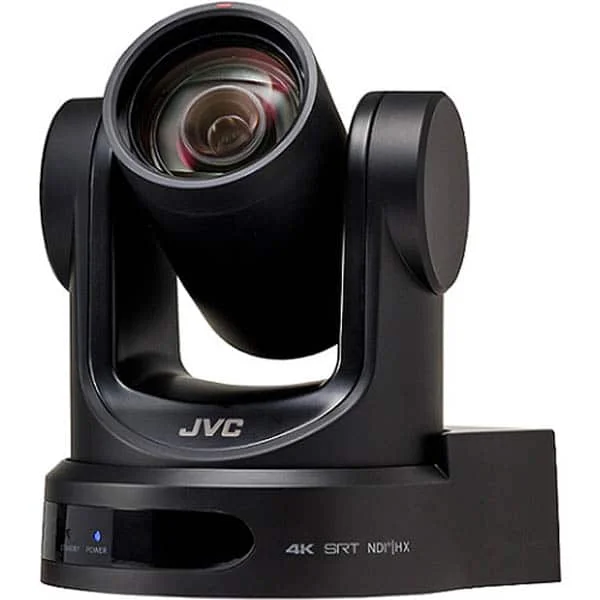

Introducing the JVC KY-PZ400N with NDI|HX (Black)
The JVC KY-PZ400N with NDI|HX (Black) is a PTZ camera that offers resolutions up to 4K UHD 2160p30, a 1/2.5 4K CMOS sensor, and a built-in 12x optical zoom lens with 16x digital zoom for capturing crisp images. The camera offers multiple video output options, including HDMI, 3G-SDI, USB Type-B, NDI|HX, and IP streaming. In addition to capturing HDMI video up to 4K UHD and 3G-SDI up to 1080p60, the camera will seamlessly integrate into your NDI network and communicate with other NDI applications and hardware using the high-compression, high-quality NDI|HX protocol.
The KY-PZ400N camera supports H.264/H.265 compression and transmits IP video streams using SRT, RTSP, RTMP, and HTTP protocols. You can program the camera to move quickly between positions using RS-485 or RS-232 IP control with separately available serial controllers, or you can use the included IR remote control. The KY-PZ400N features 3.5 mm analog audio input and output. VITC and NTP synchronization are also supported for multi-camera productions of events requiring real-time timecode and clock synchronization. The camera can be powered using the included AC adapter or via PoE (Power over Ethernet) on a supported network. A ceiling mount is included, and you can flip the camera image when mounted upside down.
Key features of the KY-PZ400N
- 1/2.5 4K CMOS sensor
- 12x optical zoom
- Resolution up to 3840 x 2160p30
- HDMI/3G-SDI and NDI|HX video output
- 255 presets, 3.5 mm stereo audio input/output
- RS-232/RS-485 serial control, cascaded
- Supports H.264/H.265/MJPEG compression
- Supports RTSP, RTMP, SRT, and HTTP protocols
- Built-in AAC and G712 audio encoding
- Supports VITC and NTP synchronization
