Description

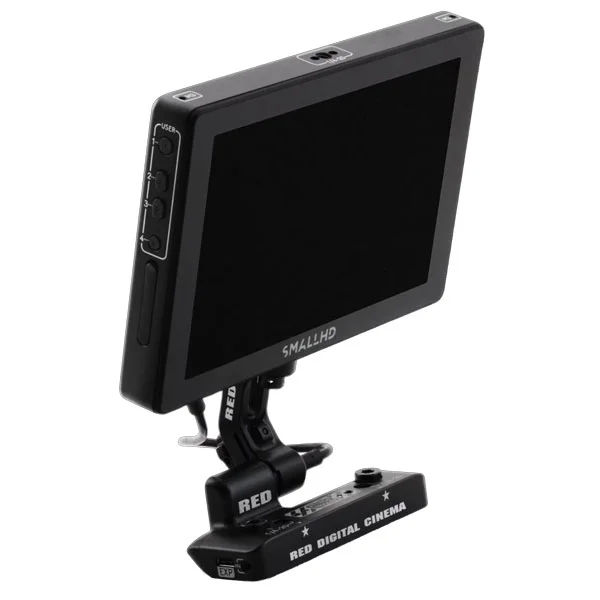

Introducing the DSMC3 RED Touch 7.0 LCD monitor

The DSMC3 RED Touch 7.0 LCD is a professional touchscreen monitor designed to deliver an optimal HD monitoring experience when recording and viewing footage on compatible RED cameras. With its high-resolution 1920 x 1200, high brightness of 1300 nits , and pixel density of 322 ppi, this monitor ensures an extremely sharp and perfectly legible image, even in bright shooting environments.

Image quality and color accuracy

The DSMC3 RED Touch 7.0 LCD monitor covers 100% of the DCI-P3 color space , offering accurate color reproduction essential for film and broadcast productions. Its color management relies on 10-bit processing (8-bit panel) , enabling precise display of nuances and improved gradient handling.

With a contrast ratio of 1250:1 and a viewing angle of ±160° on all axes, the monitor ensures constant visibility regardless of the operator’s position.

Touchscreen interface and integrated professional tools

The screen uses Projected Capacitive (pCap) multi-touch technology for smooth interface navigation. The monitor runs on the SmallHD PageOS system , which provides complete camera control and access to professional video analysis tools such as:

• Waveform
• Vectorscope
• Histogram
• False Color
• Color Picker
• Pixel Zoom

These tools allow image operators and camera assistants to precisely analyze exposure and colorimetry directly on set.

Robust design and seamless integration with RED cameras

The monitor is made of aluminum alloy , ensuring robustness and lightness with a screen weight of approximately 568 g . It is equipped with a removable integrated tilt arm capable of rotating up to 180° , offering great mounting flexibility.

The system uses next-generation pogo pins to provide power and video signal directly from the camera. It can also connect via a single-locking USB-C DSMC3 RMI cable , eliminating the need for additional SDI or power cables.

Case studies

During a film shoot with a RED V-RAPTOR or KOMODO-X camera, the DSMC3 RED Touch 7.0 LCD allows the cinematographer and first assistant camera to quickly access image analysis tools to control exposure and color balance.

On a documentary or broadcast shoot, its high brightness of 1300 cd/m² ensures clear image quality outdoors. The 180° allows for easy adjustment of the viewing angle to suit the camera or rig setup.

Frequently Asked Questions

1. Which cameras are compatible with the DSMC3 RED Touch 7.0 LCD?

This monitor is compatible with KOMODO-X, V-RAPTOR, and V-RAPTOR XL cameras. It requires camera firmware version 1.1 or later to function correctly.

2. What is the monitor’s resolution?

The monitor has a resolution of 1920 x 1200 with a pixel density of 322 ppi, ensuring a detailed image for professional video monitoring.

3. Is the monitor bright enough for outdoor filming?

Yes, with a maximum brightness of 1300 nits, the screen remains perfectly readable in bright lighting conditions.

4. Does the monitor have a touchscreen?

Yes, it incorporates a Projected Capacitive multi-touch screen allowing easy navigation through menus and control of camera functions.

5. How is the monitor powered?

Power and communication are provided via the DSMC3 RMI Cable or directly via the integrated pogo pins, eliminating the need for additional SDI or power cables.

Key features of the DSMC3 RED Touch 7.0 LCD monitor

• 7-inch high-resolution 1920 x 1200 touchscreen for precise monitoring of RED cameras
• Brightness of 1300 nits, ideal for outdoor filming
• 100% DCI-P3 coverage for faithful color reproduction
• SmallHD PageOS interface with professional tools : Waveform, Histogram, False Color, Vectorscope
• 180° tilting arm and RMI connection for easy integration without additional cables
