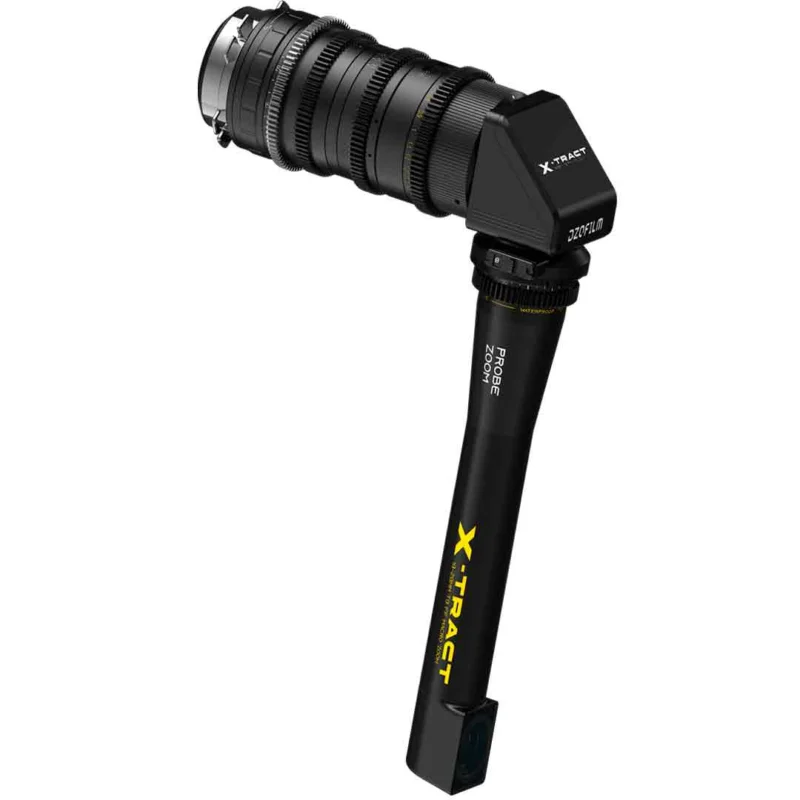

Introducing the DZOFILM X-tract 18-28mm 360°

The DZOFILM X-tract 18-28mm 360° Periscope is an innovative zoom lens designed for audiovisual, film, and advertising professionals. Designed for full-frame with a PL (and EF available from July), this lens combines advanced optical performance with a full 360° image rotation, opening up new creative possibilities.

Thanks to an integrated prism system, the X-tract 360° allows for spectacular visual effects such as barrel roll, Dutch tilt , and inverted view, directly via its rear ring. Although this version exhibits a slight loss of light transmission compared to the 0° and 90° models (due to its prism system), it benefits from high-quality silver coatings ensuring a faithful and bright image.

A unique modular design

The X-tract series is based on a common optical structure. This means that the three variants (0°, 90°, and 360°) share the same optical barrel , allowing only the head to be changed depending on the shooting requirements. This modular approach optimizes budget and versatility in production.

Optical performance

The DZOFILM X-tract 18-28mm 360° offers an aperture range of T8 to T45, a minimum focusing distance of 6mm, a maximum magnification of 2.1x at 28mm, and an image circle diameter of 43.2mm. The lens assembly consists of 27 elements in 20 groups, including 7 HRI and 6 ED glass elements for optimized image quality.

Practical and robust

With a 30cm adjustable tube and a 55cm arc of movement, this lens is ideal for smooth vertical movements, especially for MOCO effects or complex productions. Waterproof, dustproof, and fogproof, the DZOFILM X-tract 360° also comes with several accessories, including waterproof rings, 3/8 and 1/4 threads, and a hard carrying case.

Case studies

On a commercial shoot

In food advertising, the flexibility of the lens allows for -up, high-angle shots with a smooth rotating, highlighting every culinary detail.

In narrative fiction

On a science fiction film set, the barrel roll reinforces the effect of disorientation in a dream or fall scene.

For macro wildlife photography

In wildlife documentary filming, the ultra-short focusing distance of 6mm allows the finest details to be captured, while maintaining Full Frame quality.

Frequently Asked Questions:

1. What is the camera compatibility of the DZOFILM X-tract 18-28mm 360°?

The DZOFILM X-tract 360° is compatible with Full Frame cameras such as the RED V-RAPTOR, ARRI Alexa 35, Sony BURANO/VENICE, and URSA Cine FF.

2. Can the inverted image of the X-tract 360° prism be corrected?

Yes, the inverted image can be corrected directly on the monitor or in post-production depending on the camera used.

3. What is the difference between the 0°, 90° and 360° versions?

The 360° version offers a complete image rotation, ideal for dynamic effects, but with a slight loss of light transmission compared to the 0° and 90° versions.

4. What is the advantage of a 30cm adjustable tube?

The adjustable tube allows access to hard-to-reach areas while maintaining stability and image quality.

5. Is the DZOFILM X-tract 360° suitable for outdoor filming?

Yes, thanks to its waterproof, dustproof and fogproof design, it is perfectly suited to demanding outdoor environments.

Strong points of the DZOFILM X-tract 18-28mm 360°:

• Smooth 360° rotation for visual effects like barrel roll and Dutch tilt

• High-end optical structure with 7 HRI and 6 ED lenses

• Extremely focusing at just 6mm, ideal for macro photography

• Modular design with interchangeable lenses (0°, 90°, 360°)

• Adjustable 30cm tube for precise and creative movements
