Description

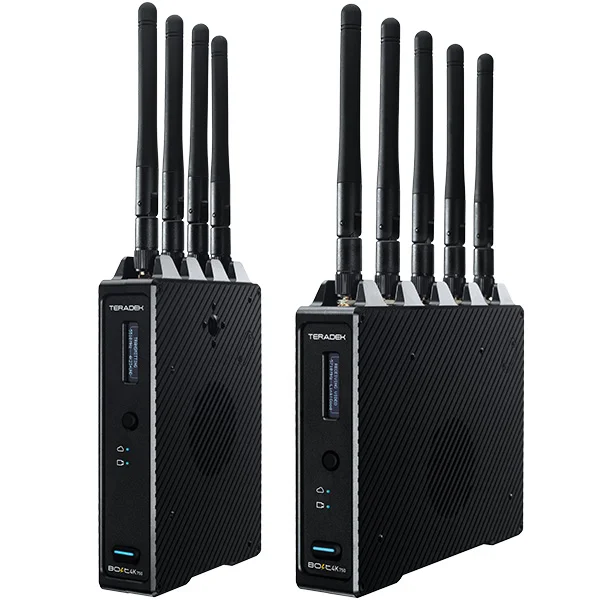

Discover the Teradek kit with BOLT 750 4K transmitter/receiver for transmitting 4K videos.

Highlights of the Teradek TX/RX BOLT 750 4K kit

Transmits uncompressed 1080p and 2160p video at 60 fps with less than 1 ms of latency.
Range up to 300m.
Each transmitter can send video to up to 6 receivers.
Transmitter inputs/outputs: 1 x 12G-SDI, 1 x HDMI 2.0, 1 x 12G-SDI loop output.
Receiver inputs/outputs: 2 x 12G-SDI, 1 x HDMI 2.0.
Compatible with all Bolt 4K models.

Real-time 4K HF video

Transmit uncompressed 1080p and 2160p video at 60 fps with less than 1 ms of delay with a range of up to 300m.

True HDR Color

The kt Bolt 4K is HLG, PQ and HDR-10 compliant, making it an invaluable tool on set for HDR workflows.

Unwavering reliability

Bolt 4K offers 8 times the wireless performance of previous Bolt generations, ensuring video is streamed even in the most challenging RF environments.

Universal compatibility

Each transmitter can send video to 6 receivers. Compatible with all models in the Bolt 4K range.

Inputs / Outputs

Transmitter: 1x 12G-SDI, 1x HDMI 2.0, 1x 12G-SDI loop output.
Receiver: 2x 12G-SDI, 1x HDMI 2.0

Battery plate

Optional Gold Mount or V-mount battery plate with power available on both TX and RX.

Camera metadata

Send start/stop indicators, timecode, and other auxiliary data wirelessly. On the receiver side, download and apply custom 3D LUTs to monitor each shot with the look you want.

BOLT APP for iOS

Pair units remotely, configure settings, and use all the features of the Bolt 4K from any iOS smartphone or tablet. The Bolt app uses the Bolt 4K’s built-in Bluetooth to put all its settings right in the palm of your hand.
