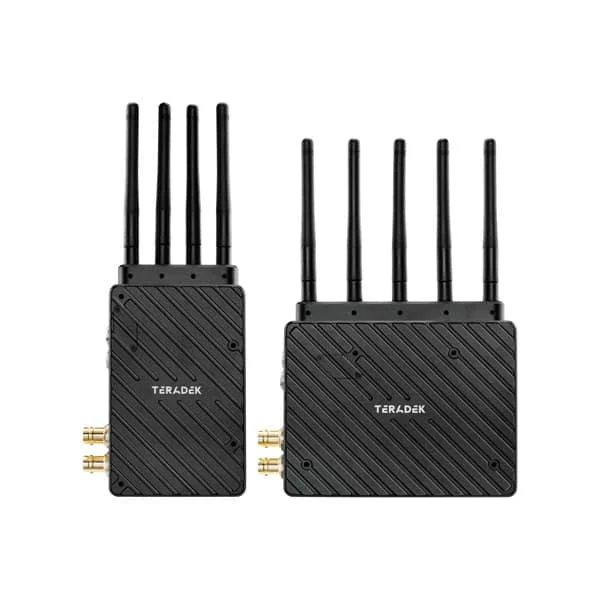

Presentation of the Teradek Bolt 6 XT 1500 12G-SDI/HDMI TX/RX
The Teradek Bolt 6 XT 1500 12G-SDI/HDMI TX/RX is a zero-latency wireless video transmission kit. It features new technology that doubles the frequency range of the Bolt 4K zero-latency system on a 6GHz U-NII 5 band. This allows for 6GHz transmission in congested environments while remaining fully compatible with the entire Bolt 4K BB3 ecosystem.
It also offers 12 new 40 MHz wide channels and an improved long-range signal algorithm. It includes an SDI Eye Pattern Tool to check the integrity of your SDI signal.
Thanks to its 12G-SDI and HDMI 2.0 I/O, it is capable of delivering resolutions up to DCI 4K in 4:2:2 10-bit HDR
Bolt 6 is fully compatible with the Bolt 4K ecosystem including the Bolt Manager app for iOS and Android.
Finally, this Bolt 6 XT transmission kit features a new design, lighter, more compact, with a more efficient cooling system and 50% quieter than the Bolt 4K.
Highlights of the Bolt 6 XT 1500 12G-SDI/HDMI TX/RX transmission kit
- Zero-delay wireless video transmission (<0.001 sec)
- Resolution up to DCI 4K
- True HDR with 4:2:2 10-bit
- 12 new 40 MHz wide channels from 5.925 to 6.425 GHz
- Improved long-range signal algorithm
- New tool for monitoring SDI signal quality
- 12G-SDI & HDMI 2.0 I/O
- Universal compatibility with Bolt 6 and Bolt 4K
- Ultra-fast pairing and intuitive setup with the Bolt Manager app
- AES-256 encryption and RSA 1024 key
- Optional V-Mount / Gold-Mount battery plate
